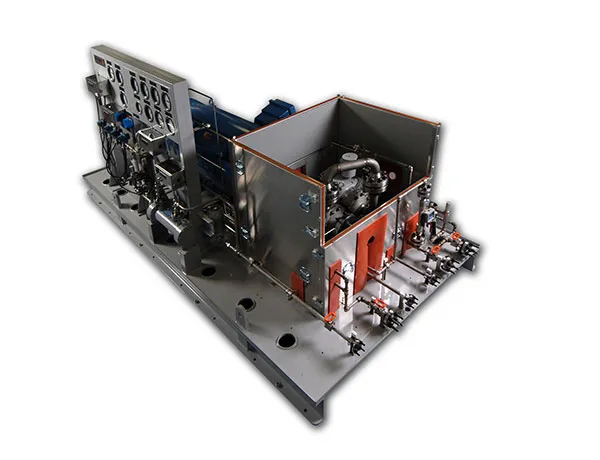

Sundyne HMP 3000 Overhung Impeller Integrally Geared Multi-Stage Pump

Sundyne HMP 3000 Overhung Impeller Integrally Geared Multi-Stage Pump

Heavy duty and extremely high pressure, the Sundyne overhung impeller integrally geared multi-stage pump

Sundyne integrally gear driven multi-stage pumps are utilized by process engineers to manufacture fertilizer, urea and PTA. These pumps are able to safely reach extremely high pressures and will run reliably for 5 years without an overhaul. Up to three pump stages are powered by a single gearbox and motor resulting in energy and space savings. Sundyne multi-stage pumps generally utilize only 25% of the space and require much less maintenance than between bearing pumps and generate extremely high pressures.

Unlike conventional multi-stage pumps, Sundyne computer tailored hydraulics place the B.E.P. (best efficiency point) at the rated point resulting in optimum efficiency.  An added benefit is reduced end-of-curve horsepower, allowing for smaller driver sizes resulting in energy savings.

  • Flows to 440 gpm (100 m³/hr)
  • Heads to 10,000 ft (3,050 m)
  • Suction Pressure 425 psi (30 bar)
  • Temperature Range -200 to 500°F (-130 to 260°C)


  • Fertilizer manufacturing
  • PTA – Purified Terephthalic Acid
  • Urea processing


Proven to be reliable, safe, compact and efficient, Sundyne HMP 3000 OH6 integrally geared up to 3 stage pumps provide a number of operational benefits:

  • Two stage overhung pump according to API 610 – ISO 13709 design recommendations for integrally geared pumps
  • Maximized up time
  • Saves space-25% the size of competing multi-stage pumps
  • ATEX certified
  • Continuous operations for 5 years with no overhaul
  • Barske impeller low NPSH technology
  • Optimized pump engineering to meet the BEP – Best Efficiency Point to save energy through efficiency
  • Safely reaches extremely high-pressures quickly
