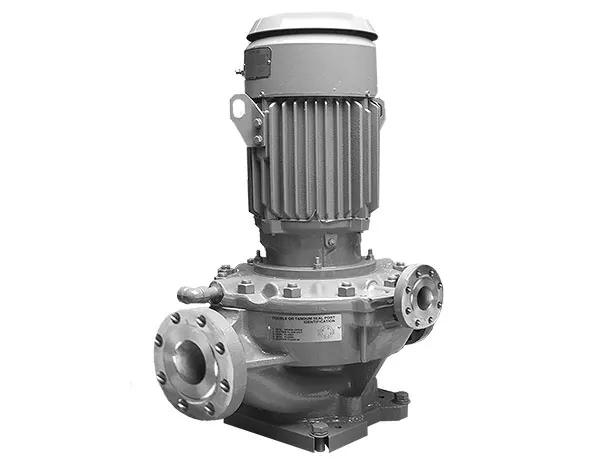

Sundyne LMV 801 Direct Drive Pump
Sundyne LMV 801 Direct Drive Pump
Safe, reliable and economical the Sundyne API 610, OH3 or OH5, Direct Drive Pump
The Sundyne LMV-801 is Sundyne’s original direct drive pump. Over the last several decades, thousands of these general service pumps have been deployed by process and rotating equipment engineers for industrial applications in the hydrocarbon, refining, petrochemical, chemical production, oil and gas production, offshore and specialty processing industries. Sundyne pumps are renowned for high suction pressure and for a wide range of operating temperatures.
- Flows to 380 gpm (69 m³/hr)
- Heads to 720 ft (153 m)
- Suction Pressure 1,000 psi (69 bar)
- Temperature Range -200 to 650°F (-130 to 340°C)
The vertical configuration of the direct drive line of Sundyne pumps are specifically designed to save valuable space in refineries, NGL production, petrochemical and chemical plants.
APPLICATIONS
- Feed pumps
- Booster pumps
- Bottoms pumps
- Wash water pumps
- Reflux pumps
- Condensate pumps
Benefits
Proven to be reliable, safe, compact and efficient, Sundyne LMV 801 pumps provide a number of operational benefits:
- Single stage, vertical in-line overhung pump according to ISO 13709/API 610 OH3 design recommendations with separate bearing housing and OH5 rigidly coupled
- Maximized up time
- Saves space-25% the size of competing horizontal pumps
- API 610 OH3 and OH5
- ATEX certified
- Continuous operations for 5 years with no overhaul
- Upgradable to sealless magnetic drive API 685 without changing piping
- Upgradable to cartridge seal API 682
- Barske impeller low NPSH technology
