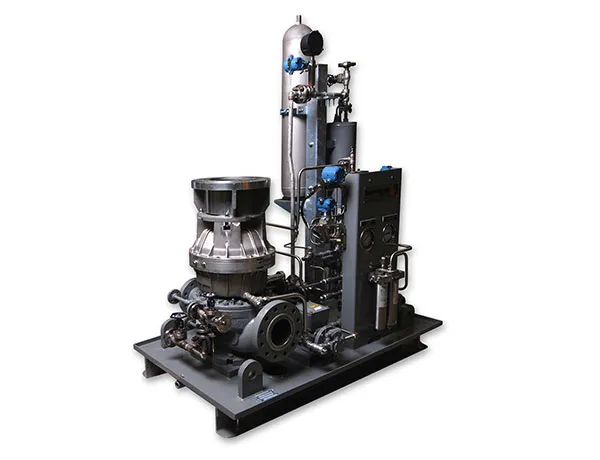

Sundyne LMV 313 OH6 Integrally Geared Pump

Sundyne LMV 313 OH6 Integrally Geared Pump

Safe, reliable and economical the Sundyne API 610, OH6, Integrally geared pump

Sundyne API 610, 11th Edition OH6 Integrally Gear Driven Pumps are engineered for critical high-head, low-flow, heavy-duty services required by process and rotating equipment engineers within the hydrocarbon, chemical, petrochemical, power generation, gas production, and specialty processing industries. Sundyne pumps are renowned for high suction pressure and a wide range of operating temperatures.

Unlike conventional multi-stage pumps, Sundyne computer tailored hydraulics place the B.E.P. (best efficiency point) at the rated point resulting in optimum efficiency.  An added benefit is reduced end-of-curve horsepower, allowing for smaller driver sizes resulting in energy savings.

  • Flows to 1,040 gpm (73 m³/hr)
  • Heads to 1,790 ft (1,348 m)
  • Suction Pressure 500 psi (71 kg/cm²)
  • Temperature Range -200 to 650°F (-130 to 340°C)

Multi-stage performance in a single stage pump

The vertical configuration of the integrally geared line of Sundyne pumps is specifically designed to save valuable space in refineries, NGL production, petrochemical and chemical plants.


  • Feed pumps
  • Booster pumps
  • Bottoms pumps
  • Wash water pumps
  • Reflux pumps
  • Condensate pumps


Proven to be reliable, safe, compact and efficient, Sundyne LMV 313 OH6 integrally geared pumps provide a number of operational benefits:

  • Single stage, vertical in-line overhung pump according to ISO 13709/API 610 OH6 design recommendations for integrally geared pumps
  • Maximized up time
  • Saves space-25% the size of competing horizontal pumps
  • ATEX certified
  • Continuous operations for 5 years with no overhaul
  • Barske impeller low NPSH technology
  • Optimized pump engineering to meet the BEP – Best Efficiency Point to save energy through efficiency
